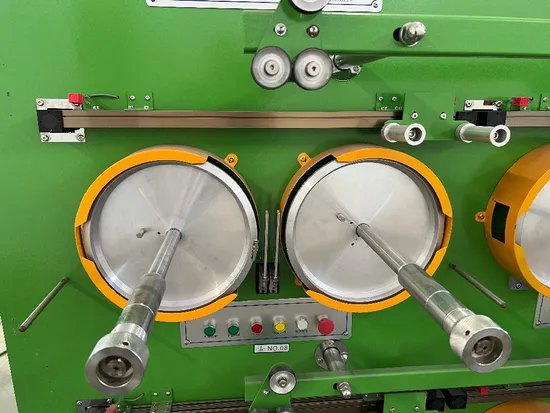

High-efficiency 32-line enameling machine for uniform coating on fine copper wires, designed for high-volume industrial production.
Features a high-precision tension control system ensuring consistent wire quality and minimal breakage.

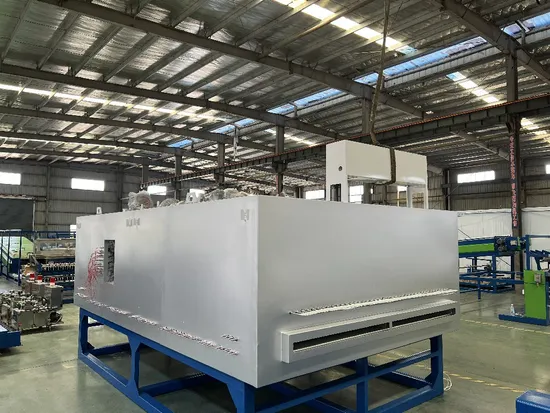

Equipped with an advanced catalytic combustion system for high energy efficiency and reduced VOC emissions.
Modular design allows for flexible configuration and streamlined maintenance, significantly minimizing operational downtime.
Fully automated with a PLC control system and user-friendly HMI for precise operation and real-time process monitoring.
Built for continuous 24/7 operation with an automatic lubrication system for all critical moving parts.
Adapts to both copper and aluminum wire, offering versatile production capabilities for different applications.
Applicable Wire Diameter: 0.1mm - 0.3mm
Number of Production Lines: 32 (16+16)
Maximum Mechanical Speed: 400 m/min
Power Requirement: 380V, 50Hz, 3-Phase (Approx. 135KW)
Take-up Bobbin Compatibility: PT4 - PT25
Maximum Coating Layers: 9 (7+2 composite)
